Product Showcase

On/Off Grid Hybrid Solar Inverter;
50KW, 75KW, 100KW;
WIT 50K-H; WIT 50K-HU;
WIT 50K-A; WIT 50K-AU;
WIT 75K-HU;
WIT 100K-H; WIT 100K-HU;
WIT 100K-A; WIT 100K-AU
Commercial Use.
Inquiry

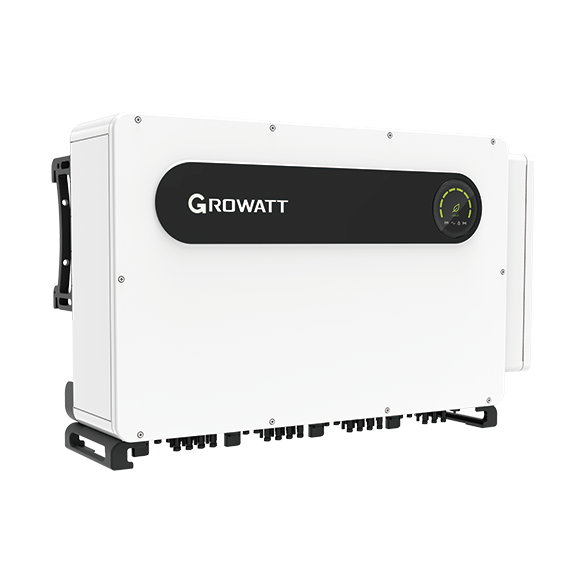

Growatt WIT 50-100K-HU/AU Three-Phase Commercial Hybrid Solar Inverter

Hff65b9e44772481aba8f7a7ae6f17417x
53fb74d7063cf2d0c9fc1ab182f668bb





Datas heet

WIT 50KTL3-H
WIT 50KTL3-H-EP

WIT 63KTL3H
WIT 63KTL3-H-EP

WIT 75KTL3-H
WIT 75KTL3-HEP

WIT 100KTL3-H
WIT 100KTL3-H-EP

input data (PV)

Max recommended PV powerffar module SIC)

109200W

124800W

156000W

156000W

Stat votage

195V

Nominal voltage

550V

Mox Input Voltiage

1100V

MPP voliage range

180V-800V

Max. input cument per MPP hacker

32A

Mox. shot cicuit cument per MPP hacker

40A

No of PV stings per MPP tacker

2





No. of MPP trackers

7

8

10

10

Output data (AC)







AC nominal power

50000W

63000W

75000W

100000W

Max.AC apparent power

55KVA

69.3KVA

82.5KVA

110KNA

Nominal AC voltage

380/400/415V



AC voltage range



-15%~+10%

AC gid frequency

50/60 Hz

AC gid frequencylange

45-55Hz/55-65Hz



Max output cument

83.3A@380V
79.7A@400V

105A@380V
100.4A@400V

125A@380V
119.6A@400V

166.7@380V
159.4A@400V

Adjustable power factar

-1...+1

THDi

<3%

AC gid connecion type

3P3W+PE/3P4W+PE

Battery data (DC)

Continuous charging and discharging power

56.7KW

71.4KW

85.1kW

113.5KW

Battery voltage range

600-1000V [for 3P3W / 680-1000V [for 3P4W]



Recommended battery voltiage

768V



Max charging and discharging curent

83.3A

105A

125A

167A

BMS communication

RS485/CAN

Backup power (AC)

Rated AC output power

50KW

63kW

75KW

100KW

Max. AC apparent power

60KVA

75.6KVA

90KVA

120KVA

Rated AC output valtage 220V/230V/240V/380V/400V/415V



Nominal AC output frequency

50/60 Hz

Load connection

3W+N+PE

Max output curent

90.9A

114.5A

136.4A

181.8A

THDv

<3%(Linear load)

Ioodunbalkance

100% three-phase unbalanced

Ovetoad

≤110%:Continues
110%~120%:10min
>120%:200ms

Efficiency

Mox. eficiency

98.0%

MAX. Batery charge/dischaige efficiency

98.0%

Protection devices

DC reverse polarity protection

Yes

Battery reverse protection

Yes

AC/DC surge protection

Class Il

Insulaion resistance monitoing

Yes

Ground fault moritoing

Yes

Grid monitoing

Yes

Resdud-curent monitoring unit

Yes

AC shortcicuit protection

Yes

Stings Moritorng

Yes

AntiH-islanding protection

Yes

PID Protection

Yes

AFCIFunction

Opt

General

Dimensions (W/H/D)

820/1350/510mm

Weight

143kg

143kg

150kg

150kg

Operaing temperature range

-30℃~60℃(>50℃, derating)

Relotive humidty

0~100%

Aliude

4000m

Topology

Transfamerless

Cooing

Smart air cooling

IP degee

IP66

Display

OLED+LEDMIF+APP

Interfaces: RS485/CANUSB

Yes

Irnterfaces: WFV4GLAN-X

Opt

















Energy Storage System Details







Hybrid Solar Inverter



-Scalable system configuration, extend to 300kW.

-Support EPs function and black start.

-100% unbalanced load when backup.

-100% continuous AC over loading capacity.

-Support remote control of DG.

-Multiple MPPTs input.

-Grid-support functions.

















Home ESS Battery System



CE/ULROHS/IEC/CB/UN38.3/MSDS etc Full Certified.

-Flexible Module Design, Free Stacking According

To Your Needs.

-Easy Installation And Transportation.

-6000 Times Cyclelife, 10 Years Warranty.

-Over temperature, over current, over voltage, over discharge, over charge protection.

















Micro Grid ESS Outdoor Cabinet



-Support on-grid and off-grid systems

equipped with fire protection system. -Built-in fan, balanced temperature. -The electrodes and busbars are designed with plastic slots to prevent leakage. -Multiple protection, Long Life, High Safety.



















Commercial & Industrial ESS Container



-Fault classification processing mechanism.

-Automatic fire alarm and automatic fire extinguishing system. -Advanced battery management system; Plug and Play, low installation operation and post-maintenance costs. -Protection class IP54
