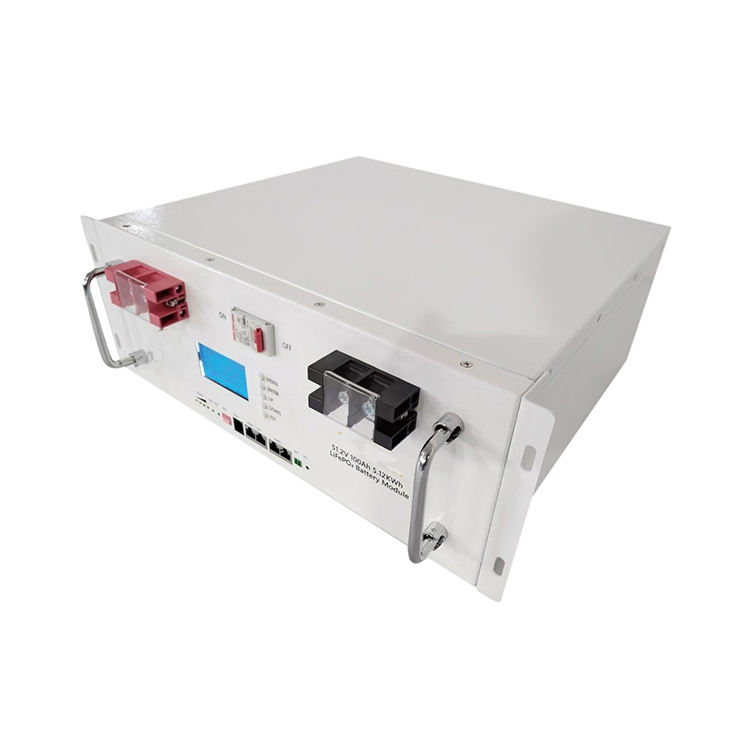

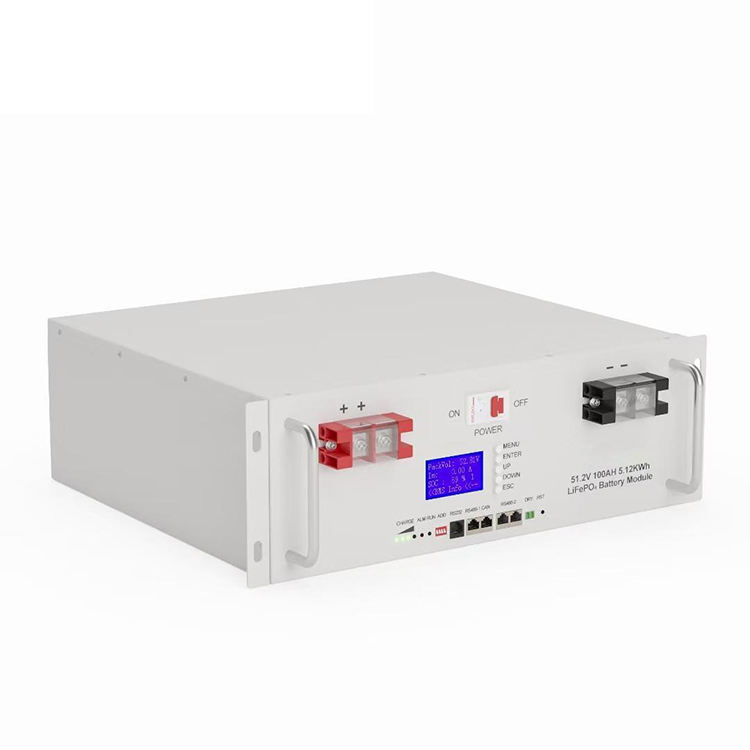

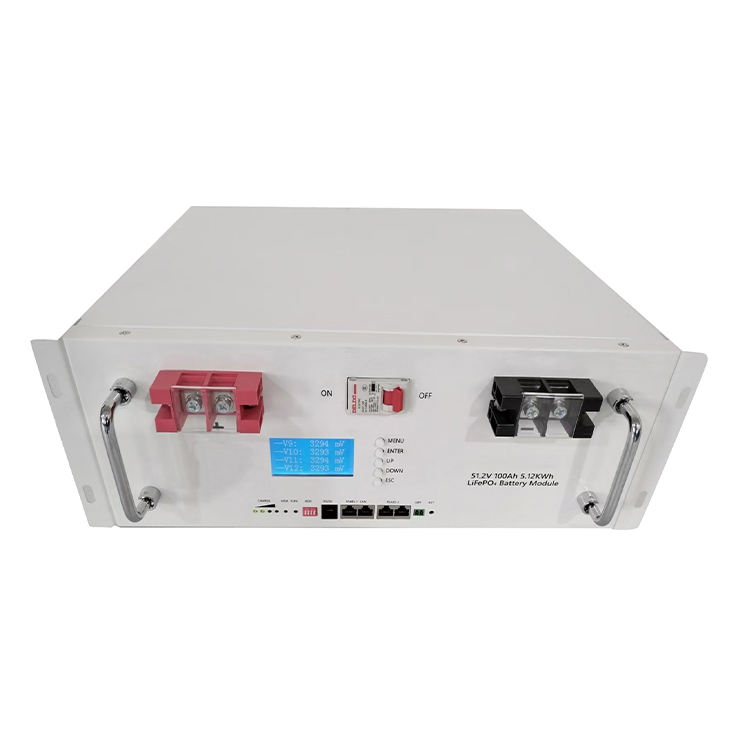

51.2v 100ah lifepo4 battery module 10pcs connection up to 512V100Ah 51.2KWh for commercial use;
compatible with most inverters such as GOODWE, GROWATT, Deye, Megarevo, Solis etc.
UL1973/ IEC62619/ CE-EMC/ UN38.3/ MSDS Certified;

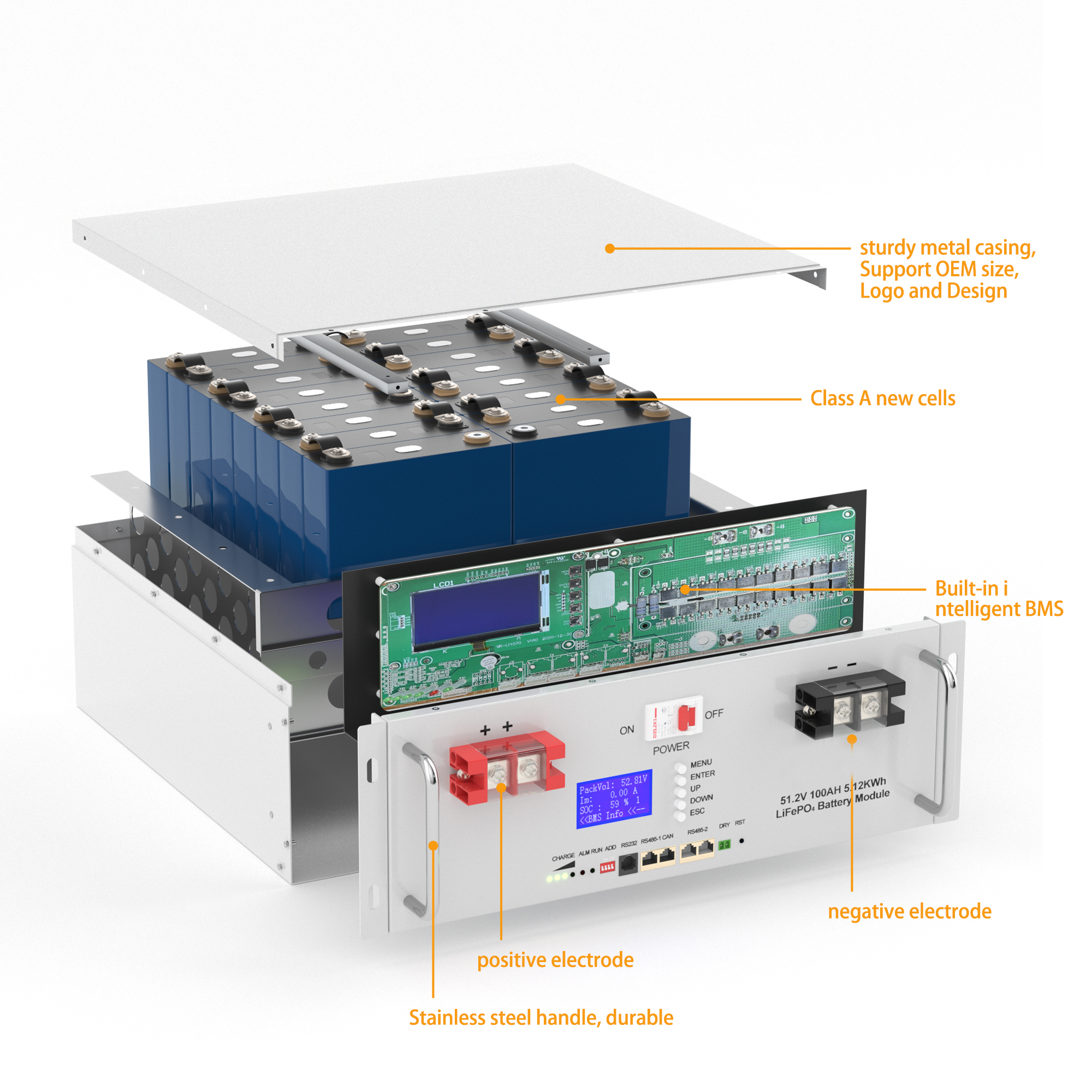

With Smart BMS Protection.
48V 51.2V Top Quality Rack-Mounted Lifepo4 Battery System
|
Model No |
ET2400 |
ET5000 |
ET7200 |
ET9600 |
ET12000 |
|
Voltage |
48 V |
48 V |
48 V |
48 V |
48 V |
|
Capacity |
50Ah |
100Ah |
150Ah |
200Ah |
250Ah |
|
Energy |
2.4KWH |
5.12KWH |
7.68KWH |
10.24KWH |
12.80KWH |
|
Operation voltage |
35.25-54.75 Vdc |
37.6-58.4Vdc |
37.6-58.4Vdc |
37.6-58.4Vdc |
37.6-58.4Vdc |
|
Max.charging voltage |
54.75Vdc |
58.4 Vdc |
58.4 Vdc |
58.4 Vdc |
58.4 Vdc |
|
Max.charging and discharging current |
50A |
100A |
100A |
100A |
100A |
|
Max Power |
2400W |
5120W |
7680W |
10240W |
12800W |
|
Life time(25°C) |
10 years |
||||
|
Life cycles((80% DOD, 25°C)) |
6000 Cycles |
||||
|
Storage time / temperature |
5 months@25°C; 3 months@35°C; 1 month@45°C |
||||
|
Operation temperature |
-20°C to 60°C @60+/-25% Relative Humidity |
||||
|
Storage temperature |
0°C to 45°C @60+/-25% Relative Humidity |
||||
|
Lithium Battery Standard |
UL1642, IEC62619, UN38.3, ROHS,CE-EMC |
||||
|
Enclosure protection rating |
IP65 |
||||
|
Dimensions(L×W×H)mm |
482*410*89 |
482*400*177 |
482*430*222 |
482*500*280 |
482*500*280 |
|
Weight |
24KG |
43KG |
65KG |
82KG |
100KG |
|
Product number |
ET2000 |
ET5000 |
ET7200 |
ET9600 |
ET12000 |
|
Norminal Voltage |
51.2V |
51.2V |
51.2V |
51.2V |
51.2V |
|
Norminal Capacity |
50Ah |
100Ah |
150Ah |
200Ah |
250Ah |
|
Norminal Battery Energy |
2560WH |
5120WH |
7680WH |
10240WH |
12800WH |
|
Dimensions |
3U 482*350*132MM |
4U 482*400*177MM |
5U 482*430*222MM |
6U 482*500*280mm |
6U 482*500*280mm |
|
Internal Resistance |
≤30mQ |
≤30mQ |
≤30mQ |
≤30mO |
≤30mQ |
|
Cycle Life |
>3000 |
>3000 |
>3000 |
>3000 |
>3000 |
|
Months Self Discharge |
<3% |
<3% |
<3% |
<3% |
<3% |
|
Charge Data: |
|||||
|
DC Normal Charge Voltage |
58.4±1Vdc |
58.4±1Vdc |
58.4±1Vdc |
58.4±1Vdc |
58.4±1Vdc |
|
Charge Mode: |
|||||
|
Recommended Charger Current |
≤20A |
≤50A |
≤50A |
≤50A |
≤50A |
|
Allowed Max. Charge Current |
25A |
100A |
100A |
100A |
100A |
|
Charge Cut-off Voltage |
58.4±1Vdc |
58.4±1Vdc |
58.4±1Vdc |
58.4±1Vdc |
58.4±1Vdc |
|
Discharge Data: |
|||||
|
Continuous Discharge Current |
25A |
50A |
75A |
100A |
100A |
|
Allowed Max. discharge current |
50A |
100A |
100A |
150A (55) |
150A (5S) |
|
Discharge cut-off voltage |
40V |
40V |
40V |
40V |
40V |
|
Working Condition: |
|||||
|
Charge Temperature |
0°Cto450C(32Tto1130F) |
0°Cto45°C(32°Fto113°F) |
0°Cto45°C(32°Fto113°F) |
0°Cto45°C(32°Fto113°F) |
0°Cto45°C(32°Fto113°F) |
|
Discharge Temperature |
-20°Cto60°C (-4°Fto 140°F) |
-20°Cto60°C (-4°Fto 140°F) |
-20°Cto60°C (-4°Fto 140°F) |
-20°Cto60°C (-4°Fto 140°F) |
-20°C to60°C (-4°Fto 140°F) |
|
Storage Temperature |
0°Cto40°C(32°Fto104°F) |
0°Cto40°C(32°Fto1040F) |
0°Cto400C(32°Fto104°F) |
0°Cto40°C(32°Fto104°F) |
0°Cto40°C(32°Fto104°F) |
|
Enclosure Protection Level |
IP54 |
IP54 |
IP54 |
IP54 |
IP54 |
|
Mechanical Data: |
|||||
|
Cell&Capacity |
LifePO4 Battery25AH&50AH |
LifePO4 Battery50AH&100AH |
LifePO4 Battery50AH&150AH |
LifePO4 Battery50AH&100AH |
LifePO4 Battery50AH |
|
Shell material |
iron shell |
iron shell |
iron shell |
iron shell |
iron shell |
